• Model Name:

    Printer Ultra Star 5306 (25pl)

  • Product Description
  • 5.3m Solvent Printer

    Printheads: StarFire 1024

    Drop Volume: 25pl

    Maximum Speed: 330 ㎡/h

    Printing Width: 5.2m

    Ink Type: Solvent

Follow Us: Facebook Twitter LinkedIn Google+ Addthis

WIT-COLOR NEW DESIGN 5.3M Large Format Solvent  Adopted Spectra StarFire-1024 Industrial Printhead

Drop Volume  25pl Maximum Speed of 330 ㎡/h  5.2m Printing Width

1.Fast Speed :  4or 6pcs star fire printhead optional. 2pass speed 330sqm/h.

2.User-friendly, easy to operate.

3.Anti -Wrinkle roller to keep smooth printing.

4.Feeding system upgrade, no wrinkle.

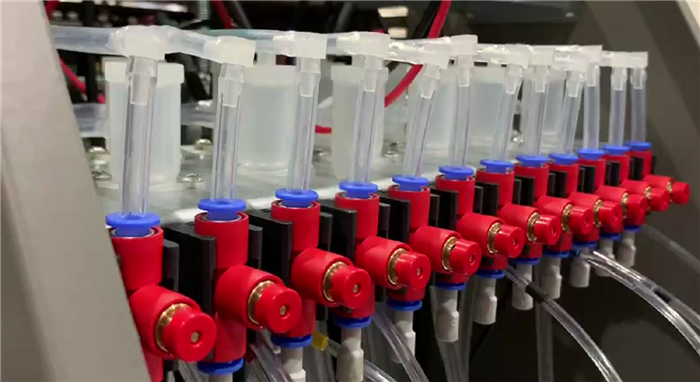

5.Imported ink system help printing smooth.

SarFire Solvent Printers
Printer Model Ultra Star 5304/6
Print Head
StarFire 1024 25PL
Printing Width 5.2m
Printing Speed Printing Mode Speed
2PASS 330㎡/h
3PASS 240㎡/h
4PASS 170㎡/h
Ink Type CMYK Solvent Ink
Media Media Processing Roll to Roll + Auto Feeding + Auto Roll Up
Media Heating Pre&Post-Media Heating
Media Type Outdoor Solvent based roll media(Flex,Vinyl,Backlit Banner etc)
Image Format TIFF, JPG, EPS, PDF
RIP Software Maintop / Photoprint (Optional)
Interface
High Speed PCIE LVDSWindows 7.
Operating System Win7 Workstation
Power Supply AC220V 50HZ±10%,UPS is required
Power 5304:7000W
PC Configuration

System: Windows 7 (Professional Version)

CPU: Intel Dual Core i5

RAM: KST  4GB

Hard Disk: WD 500G

Hard Disk Format: NTFS

VGA Card:SDC ATI 1G

CD Rom: DVD Recordable

Space for Disk C100G at least

Temperature/Humidity Temperature 20-30, Humidity 60-70%
Packing Size  LxWxH: 8.50x2.23x2.20m
G.W./N.W. 5304:7000kg/6400kg
Remark: The data is subject to change without prior notice. The speed will be varied due to different PC settings.
